BWT

BWT

BWT bestaqua 14 ROC Coffee

  Key data      Permeate performance1: 2 L/min = 120 L/hSalt retention rate: (>) 97 %Permeate yield 1,2,3 (WCF): approx. 50 %Operating conditions      Min. feed water flow rate : 4,2 L/min = 250 L/hConcentrate flow rate approx.: 2,0 L/min = 120 L/hFeed water pressure: 0,15–0,4 MPa = 1,5–4 barFeed water temperature: 5–30 °CAmbient temperature: 5–40 °CPower     Power supply: 230 V/50 Hz, ≥ 6 A protectionProtection class: IP 54Equipment fuse: 1,25 A, time-lagPower consumption    : 200 W, Standby (<) 3 " Equipment connection: EC-60320 C13 Cold appliance connection cable: 1.8 m, CEE 7/4, IEC-60320 C13Feed and drainage lines      Feed water: M ¾"Permeat: M ⅜”Concentrate: John Guest 8 mmExternal tank: John Guest 8 mmDimensions and weight      Dimensions (W x D x H): 277 x 297 x 505 mmWeight: 17.7 kgOrder numbers     BWT bestaqua 14 ROC Coffee: RS82M01A00BWT bestaqua Membrane Size 14: RS00Y61A00BWT bestaqua PREMIUM Size 14: FS24P99A00 PRODUCTS DESCRIPTION BWT bestaqua 14 ROC Coffee (Reverse Osmosis Compact) is one of the most compact RO systems for water optimisation for coffee production. All the system’s modules are hygienically integrated into the housing. BWT bestaqua 14 ROC Coffee systems are durable and robust. They work extremely reliably and require little maintenance. BWT bestaqua 14 ROC Coffee systems use two key technologies: innovative membrane technology in the BWT BESTAQUA 14 MEMBRANE module and patented BWT Magnesium technology in the BWT bestaqua 14 PREMIUM filter, which refines the water with magnesium as the flavour carrier in a targeted way. Users all over the world benefit from the excellent limescale protection of these RO systems, which give you reproducible results in water optimisation and outstanding sensory experiences for those enjoying your coffee creations. Benefits of BWT bestaqua 14 ROC Coffee at a glance: Resource-saving plug‐in technology – unpack, plug in and off you go Standardised water for coffee, reproducible worldwide Free choice of mineral quantity Free mineral quality setting (e.g. higher concentration of magnesium) Perfect machine protection and optimum mineralisation at all times

BWT

BWT BESTAQUA PREMIUM SIZE 14

SKU : FS24P99A00

BWT

BWT BESTAQUA 14 ROC MEMBRANE 14

SKU: RS00Y61A00A

BWT

BESTMIN W.PREFILTRATION (BWTBCMINPF) (Bestmin MCartridge, Bestaste 10 Cartridge, Besthead Flex Duplex & Protector Mini Set)

BESTMIN W.PREFILTRATION (BWTBCMINPF) (Bestmin MCartridge, Bestaste 10 Cartridge,Besthead Flex Duplex & Protector Mini Set)

BWT

BWT Bestprotect XL Cartridge Filter

PRODUCTS DESCRIPTION The BWT bestprotect filtration solution, using BWT’s advanced technology, provides excellent protection for the equipment used to produce hot drinks in the food service sector. It is specially designed to achieve an optimum pH value and an excellent water mineral balance – both crucial factors in great-tasting coffee and espresso. BWT bestprotect is extremely effective against limescale and gypsum residues. It also ensures a consistently high pH value, which helps to avoid any corrosion that might result in pitted stainless steel components due to high levels of salt in the water. Benefits of BWT bestprotect at a glance: Water optimisation for all hot and cold drinks Excellent protection against equipment corrosion Reliable prevention of stainless steel corrosion Protection against the most stubborn residues, e.g. gypsum Reduces maintenance costs to minimum levels Extends the life of the equipment

BWT

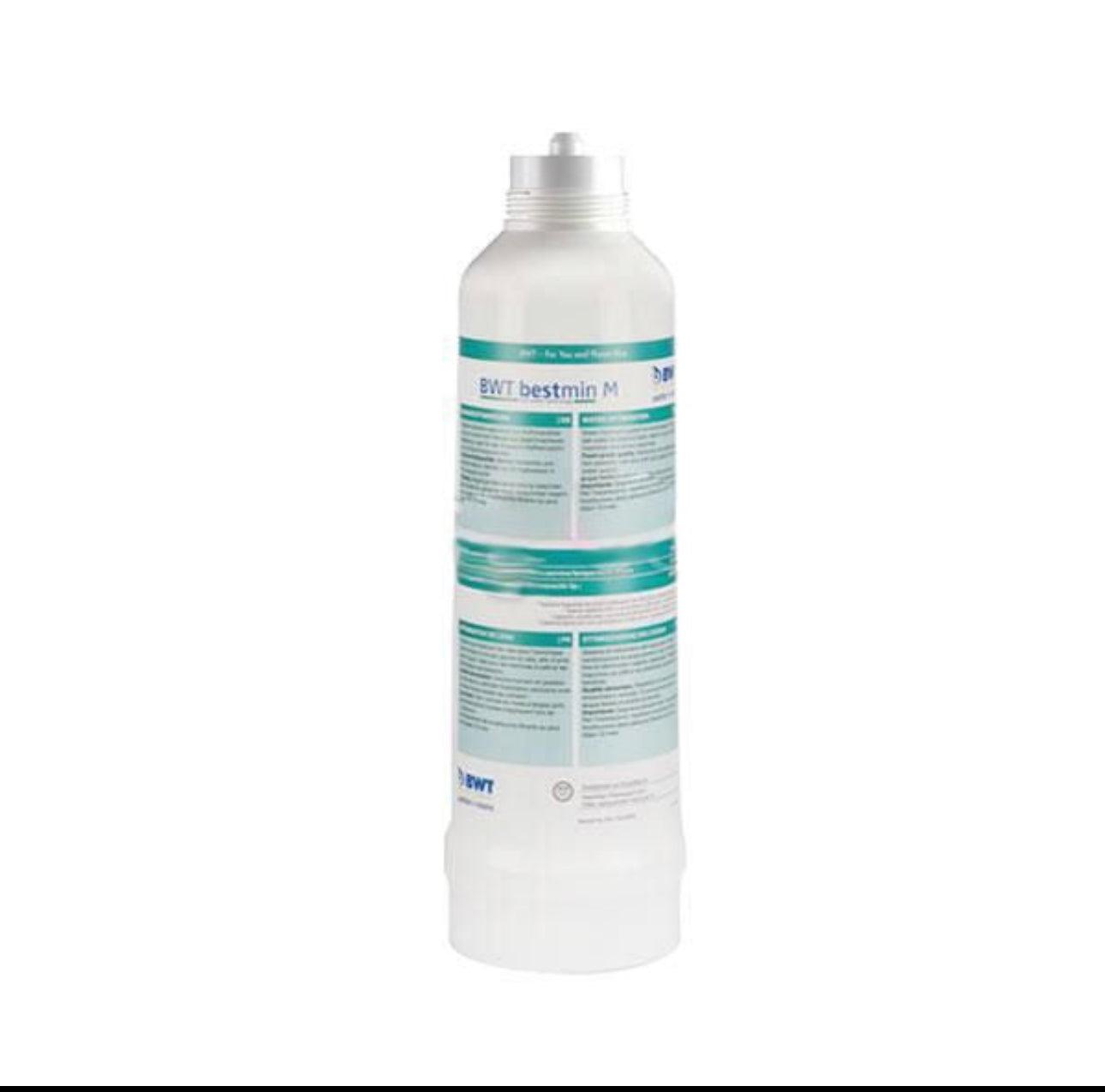

BWT -Bestmin MCartridge Filter

Bestmin M Cartridge Filter: Connection thread (in/out) 3/8″ Typical capacity in litres 10.000 Intake pressure min –max in bar 2 – 8 Water temperature min – max in °C 4 – 30 Ambient temperature min – max in °C 4 – 40 Total height without bracket (A) in mm, approx. 475 Total height with bracket (B) in mm, approx. 500 Connection height (C) in mm 425 Distance from floor (D) in mm 65 Installed length (E) in mm 125 Filter cartridges Ø (F) in mm 130 Weight without filter head in g 3.800 Order no. Installation set FS24M01A00 Order no. Filter cartridge FS24M00A00

BWT

BWT Besthead Flex

PRODUCTS DESCRIPTION With BWT besthead FLEX, the filter head with the world's most flexible connector technology, installing the filter is really easy, even where space is tight. Its innovative FLEX technology with its configured angle adjustment in 30° increments allows for the best possible orientation of the connector hoses, even where space is at a premium. It saves on space, whilst ensuring maximum safety. Thanks to the direct connection of FLEX insert components to the filter head, there is no need for additional double nipples or compression joints. When installing the product, you can use a wide variety of connectors and prefabricated hoses to connect to the raw water and to the consumer unit. Without exception, they are all equipped with FLEX insert connectors and are inserted directly into the unique interface on the filter head, where they are securely held by a clip that can be released without needing a tool. Non-return valves in the filter head on the feed and outflow prevent water from flowing back into the filter cartridge or into the mains system. Both the BWT besthead FLEX filter head and all components with FLEX insert connectors are manufactured in food-safe materials and can be used worldwide on all drinking water systems.

BWT

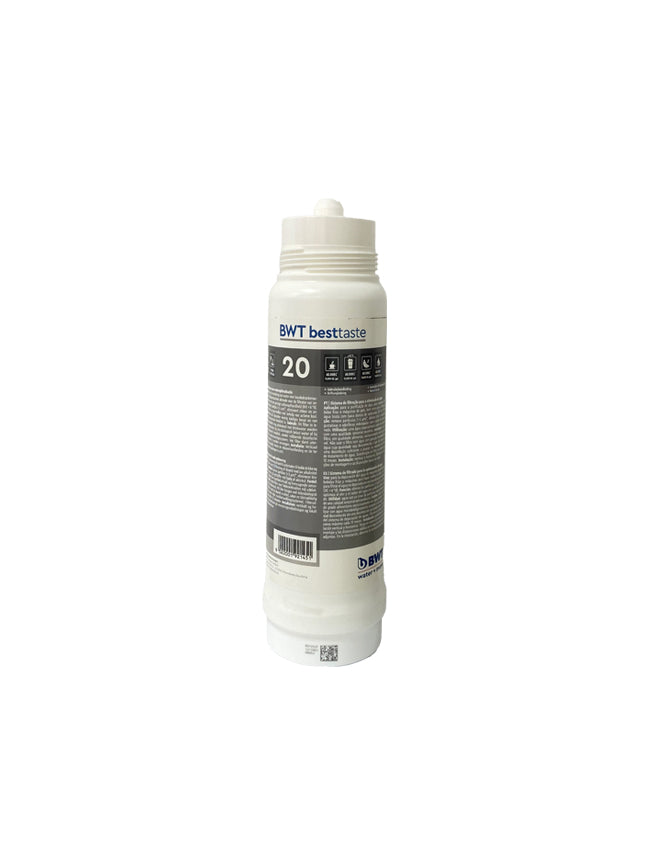

BWT Besttaste 20 Cartridge Filter

PRODUCTS DESCRIPTION Filter For Clear, Pleasant-Tasting Water For Gastronomy And VendingClear, pleasant-tasting water is essential in the gastronomy and vending sectors. Even if the local mains water contains low levels of calcium or minerals, professionally calibrated water optimisation is both required and essential for filtering out solids and removing any extraneous odours and tastes.BWT besttaste 20 filter cartridges with integrated prefiltration provide top-quality water for vending and coffee machines and the many other services in the hospitality industry. They are also excellent for prefiltration before the water is processed by BWT bestaqua ROC reverse osmosis systems. Solids and unwanted contaminants and odours are eliminated efficiently, guaranteeing perfect-tasting hot drinks and a high level of protection for all the equipment and appliances.Key benefits▪ Activated carbon filter system with integrated high-performance prefiltration▪ Particularly well suited to mains water containing heavy concentrations of solids and where demand for water is high▪ Perfect for optimising water for use in the gastronomy▪ Removal of solids, off-flavour substances and chlorine from the mains water▪ Can be used with mains water with low carbonate hardness (calcium content)▪ Easy to install using universal BWT besthead FLEX connection technology▪ High sensory grade of filtrateTechnical data▪ Integrated high-performance prefiltration of solids▪ High filter capacity▪ High-quality activated carbon▪ Activated carbon polypropylene fleece for consistently crystal-clear water▪ Reduces the heavy metal content▪ Quick and easy filter replacement▪ Can be installed vertically or horizontally

BWT

BWT BESTTASTE 15

BWT

BWT Besttaste 10 Cartridge Filter

PRODUCTS DESCRIPTION Filter for Clear, Pleasant-Tasting Water for Gastronomy and Vending.Clear, pleasant-tasting water is essential in the gastronomy and vending sectors. Even if the local mains water contains low levels of calcium or minerals, professionally calibrated water optimisation is both required and essential for filtering out solids and removing any extraneous odours and tastes.BWT besttaste filter cartridges with integrated prefiltration provide top-quality water for vending and coffee machines and the many other services in the hospitality industry. They are also excellent for prefiltration before the water is processed by BWT bestaqua ROC reverse osmosis systems. Solids and unwanted contaminants and odours are eliminated efficiently, guaranteeing perfect-tasting hot drinks and a high level of protection for all the equipment and appliances in soft water areas.Key benefits Activated carbon filter system with integrated high-performance prefiltration Particularly well suited to mains water containing heavy concentrations of solids and where demand for water is high Perfect for optimising water for use in the gastronomy Removal of solids, off-flavour substances and chlorine from the mains water Can be used with mains water with low carbonate hardness (calcium content) Easy to install using universal BWT besthead FLEX connection technology High sensory grade of filtrate Technical data Integrated high-performance prefiltration of solids High filter capacity High-quality activated carbon Activated carbon polypropylene fleece for consistently crystal-clear water Reduces the heavy metal content Quick and easy filter replacement Can be installed vertically or horizontally

ecosoft

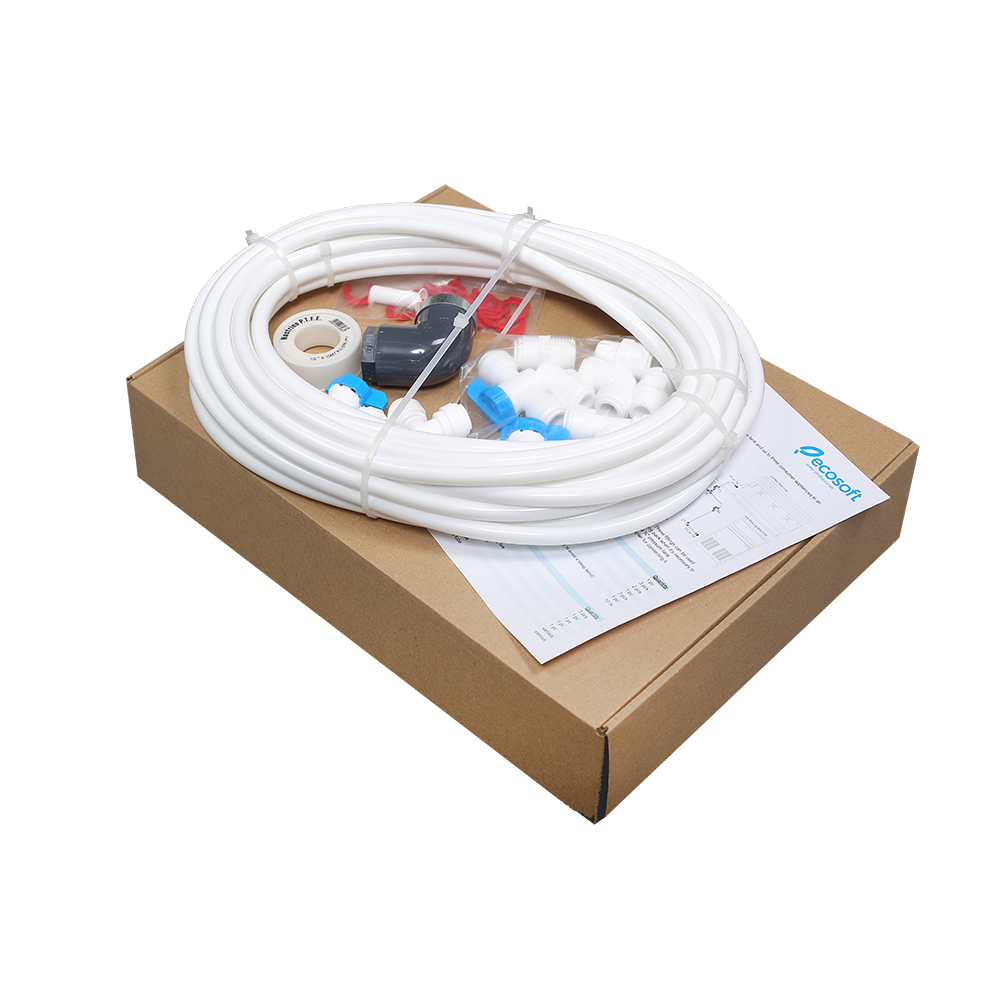

RObust connection kit for Ecosoft RObust filters

  Specification This fitting pack allows to connect one ¾″ pressure tank and up to three consumer appliances to an Ecosoft RObust reverse osmosis system. System components   ¾″ female — ⅜″ female threaded PVC elbow - 1 pc. ⅜″ tube valve - 3 pcs. ⅜″ tube tee - 2 pcs. ½″ male — ⅜″ tube adapter - 1 pc. ⅜″ male — ⅜″ tube adapter - 3 pcs. ⅜″ tube elbow (optional—use if necessary to avoid a steep bend) - 1 pc. ⅜″ flexible tube - 10 m. Some of the fittings shown on the diagram come from RObust package (download). These fittings can be used interchangeably or together with the fittings from RObust connection fitting pack when it’s necessary to connect more than one appliance with ⅜″ or ½″ female thread ports or a ¾″ pressure tank.If any of your appliances have different thread sizes, use a suitable adapter for connecting it.   Contains all the necessary fittings and tubes to connect Robust filtersto 3/4ʺ pressure tank and up to three appliances with 3/8ʺ or 1/2ʺ inlets No plastic cement is required for assembling

ecosoft

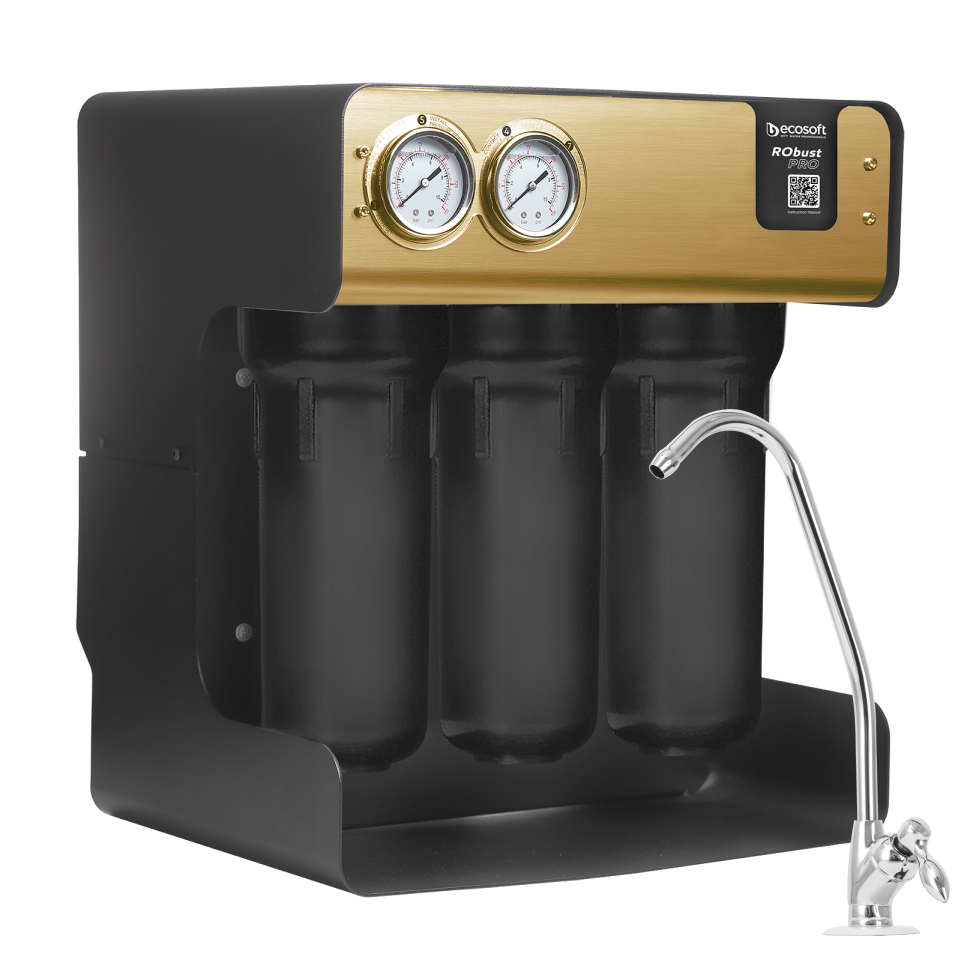

Ecosoft RObust Coffee reverse osmosis filter

  Ecosoft RObust COFFEE is a unique offer for real professionals. The filter is designed in compliance with world “coffee” standards and allows you to get water that perfectly reveals the unique taste of coffee. Water fully complies with specialty coffee association standards. ‍ Experience Perfect Coffee with a Simple RObust Setup Flow rate 75 liters per hour Made to run 20 hours per day Provides perfect water for coffee (in accordance with the SCA standards) Recovery rate 50% - filter is economical and environmentally-friendly Built-in pressure gauges indicating pump conditions CE marked and confirmed to be safe by EC New Approach Directives Flexible system configuration depending on the feed water

BWT

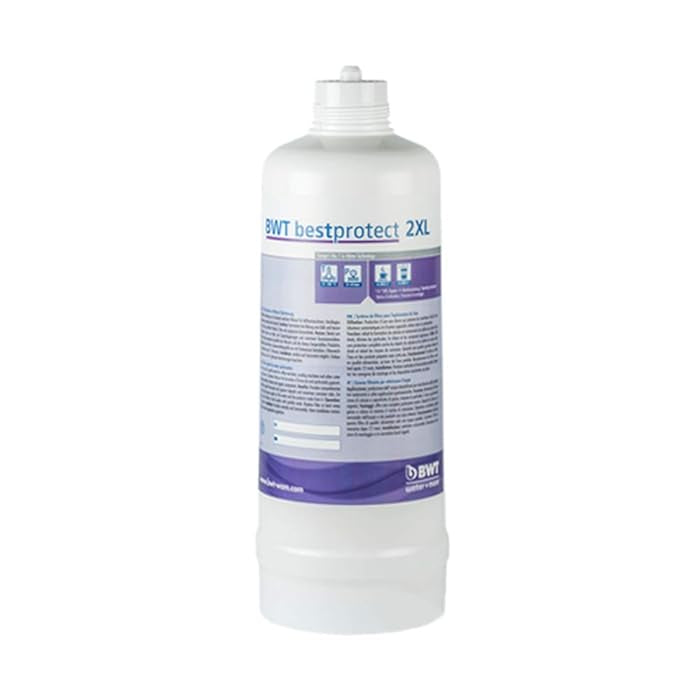

BWT FILTER CARTRIDGE BESTPROTECT 2XL

The BWT bestprotect filtration solution, using BWT’s advanced technology, provides excellent protection for the equipment used to produce hot drinks in the food service sector. It is specially designed to achieve an optimum pH value and an excellent water mineral balance – both crucial factors in great-tasting coffee and espresso. BWT bestprotect is extremely effective against limescale and gypsum residues. It also ensures a consistently high pH value, which helps to avoid any corrosion that might result in pitted stainless steel components due to high levels of salt in the water.

BWT

BWT Bestprotect XL with Besthead Flex Set

BWT Bestprotect XL with Besthead Flex Set Bestprotect XL: Connection thread (in/out) 3/8" Intake pressure min –max in bar 2 – 8 Water temperature min – max in °C 4 – 30 Ambient temperature min – max in °C 4 – 40 Total height without bracket (A) in mm 500 Total height with bracket (B) in mm 530 Connection height (C) in mm 450 Distance from floor (D) in mm 65 Installed length (E) in mm 125 Filter cartridges Ø (F) in mm 145 Weight in kg, approx. 4.0 Order no. Installation set FS28N01A00 Order no. Filter cartridge FS28N00A00 Besthead Flex: Filter head with innovative FLEX connector technology Fits all BWT water+more filter cartridges With integrated venting valve For installation anywhere, particularly where space is tight Extensive FLEX connector technology available, in a range of dimensions The BWT bestprotect filtration solution, using BWT’s advanced technology, provides excellent protection for the equipment used to produce hot drinks in the food service sector. It is specially designed to achieve an optimum pH value and an excellent water mineral balance – both crucial factors in great-tasting coffee and espresso. BWT bestprotect is extremely effective against limescale and gypsum residues. It also ensures a consistently high pH value, which helps to avoid any corrosion that might result in pitted stainless steel components due to high levels of salt in the water. Benefits of BWT bestprotect at a glance: Water optimisation for all hot and cold drinks Excellent protection against equipment corrosion Reliable prevention of stainless steel corrosion Protection against the most stubborn residues, e.g. gypsum Reduces maintenance costs to minimum levels Extends the life of the equipment With BWT besthead FLEX, the filter head with the world's most flexible connector technology, installing the filter is really easy, even where space is tight. Its innovative FLEX technology with its configured angle adjustment in 30° increments allows for the best possible orientation of the connector hoses, even where space is at a premium. It saves on space, whilst ensuring maximum safety. Thanks to the direct connection of FLEX insert components to the filter head, there is no need for additional double nipples or compression joints. When installing the product, you can use a wide variety of connectors and prefabricated hoses to connect to the raw water and to the consumer unit. Without exception, they are all equipped with FLEX insert connectors and are inserted directly into the unique interface on the filter head, where they are securely held by a clip that can be released without needing a tool. Non-return valves in the filter head on the feed and outflow prevent water from flowing back into the filter cartridge or into the mains system. Both the BWT besthead FLEX filter head and all components with FLEX insert connectors are manufactured in food-safe materials and can be used worldwide on all drinking water systems.

BWT

BWT Bestmin M with Besthead Flex Set

Bestmin M: Connection thread (in/out) 3/8" Typical capacity in litres 10.000 Intake pressure min –max in bar 2 – 8 Water temperature min – max in °C 4 – 30 Ambient temperature min – max in °C 4 – 40 Total height without bracket (A) in mm, approx. 475 Total height with bracket (B) in mm, approx. 500 Connection height (C) in mm 425 Distance from floor (D) in mm 65 Installed length (E) in mm 125 Filter cartridges Ø (F) in mm 130 Weight without filter head in g 3.800 Order no. Installation set FS24M01A00 Order no. Filter cartridge FS24M00A00 Besthead Flex: Filter head with innovative FLEX connector technology Fits all BWT water+more filter cartridges With integrated venting valve For installation anywhere, particularly where space is tight Extensive FLEX connector technology available, in a range of dimensions PRODUCTS DESCRIPTION   BWT bestmin filter cartridges optimise water with a low mineral content for use in the food service sector. This often applies to water in holiday locations, for example from lakes and reservoirs and the water produced by reverse osmosis in seawater treatment plants. BWT bestmin is the perfect solution for restoring this deficiency. The balanced combination of natural minerals in the BWT bestmin filter adds the correct level of minerals to the water used in the food service sector, achieving an optimum brewing and full-taste experience for hot and cold drinks. BWT bestmin gives stale-tasting water a superb sensory quality that brings out the full flavour of hot drinks. Benefits of BWT bestmin at a glance: For hot and cold drinks Special filter protects against corrosion and residues Simple single-use system Vertical or horizontal installation Special BWT water+more filter for optimum water mineral content Innovative activated carbon fleece for full taste enjoyment With BWT besthead FLEX, the filter head with the world's most flexible connector technology, installing the filter is really easy, even where space is tight. Its innovative FLEX technology with its configured angle adjustment in 30° increments allows for the best possible orientation of the connector hoses, even where space is at a premium. It saves on space, whilst ensuring maximum safety. Thanks to the direct connection of FLEX insert components to the filter head, there is no need for additional double nipples or compression joints. When installing the product, you can use a wide variety of connectors and prefabricated hoses to connect to the raw water and to the consumer unit. Without exception, they are all equipped with FLEX insert connectors and are inserted directly into the unique interface on the filter head, where they are securely held by a clip that can be released without needing a tool. Non-return valves in the filter head on the feed and outflow prevent water from flowing back into the filter cartridge or into the mains system. Both the BWT besthead FLEX filter head and all components with FLEX insert connectors are manufactured in food-safe materials and can be used worldwide on all drinking water systems.

BWT

BWT Limescale Pad

Product ID: KS12I00A00 BWT bestsave technology: Simplicity: no installation needed in the water tank All materials used are of food-grade quality Hygienic protection against bacterial growth Removal of unwanted tastes and smells (e.g. chlorine) Benefits of BWT bestsave at a glance: Usable in all compact coffee and vending machines with built-in water tanks Easy to use and reliable The very best quality drinks, consistently, every time Safe and effective protection against limescale Less maintenance and descaling required   Perfect basic limescale protection for automatic coffee machinesThe new BWT bestsave limescale protection pad offers the perfect basic limescale protection for all hot drinks machines with integrated water tanks. This means that BWT bestsave, in all its various sizes, is compat-ible with almost every type of coffee-maker, automatic coffee machine and compact vending equipment.Whether supplied to caterers, bakers, small cafés or to offices in the Office Coffee sector, BWT bestsave is still the easiest and most efficient solution for top quality drinks.
